Panasonic Industrial Robot Sales. We have Tawers Robots

Panasonic Robot / Performarc Cell List

	PRODUCT DETAILS	LINK
PA055 / PA250M	Small footprint. Great first cell for a customer new to robotics, or just an addition to your fleet. Entry level, so lowest starting price of all Performarcs. All on 1 welded frame; just drop it in with a forklift, add air and power, and you are ready to go. Typical part sizes (in inches): 12 x 53, 18 x 45, 24 x 30	Brochure
PA102S / PA350S	Servo Table. Fast, safe and reliable. It takes 2.2 sec for the table to rotate. Less operator fatigue since the operator does not have to walk as far to load parts. The table is an additional 7th axis for the robot, so it's extremely reliable. Typical part sizes (in inches): 12 x 53, 18 x 45, 24 x 30	Brochure
PA112S / PA750S	Similar to the machine above, except able to handle larger parts. Typical part sizes (in inches): 12 x 87, 24 x 76, 36 x 53	Brochure
PA122S / PA550H	Similar to the PA112S / PA750S above. Instead of a flat table, now there are servo head and tailstocks on both sides. Maximum part size (in inches): 34 x 48	Brochure
PA202S / PA1100SS	Servo Headstock and Tailstock on 2 sides. Can accomodate large parts. Operator loads on opposite side of the machine. These machines work well on large parts with long cycle times. 120 in. between faceplates, 44 in. turning diameter	Brochure
TA1000	Panasonic's smallest arm, but still has a decent reach. This arm comes as a TA1000G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1000WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application. Reach is 1068mm from base.	Brochure
TA1400	Panasonic's midsize arm. This arm comes as a TA1400G3 which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1400WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application. Reach is 1374mm from base.	Brochure
TA1600	Panasoni'cs medium arm. This arm comes as a TA1600G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1600WG3, which has Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application. Reach is 1598mm from base.	Brochure
TA1800	Panasonic's large arm. This arm comes as a TA1800G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1800WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application. Reach is 1796mm from base.	Brochure
TA1900	Panasonic's largest arm. This arm comes as a TA1900G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1900WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application. Reach is 1895mm from base.	Brochure

PRODUCT DETAILS

LINK

PA055 / PA250M

Small footprint. Great first cell for a customer new to robotics, or just an addition to your fleet. Entry level, so lowest starting price of all Performarcs. All on 1 welded frame; just drop it in with a forklift, add air and power, and you are ready to go.

Typical part sizes (in inches): 12 x 53, 18 x 45, 24 x 30

Brochure

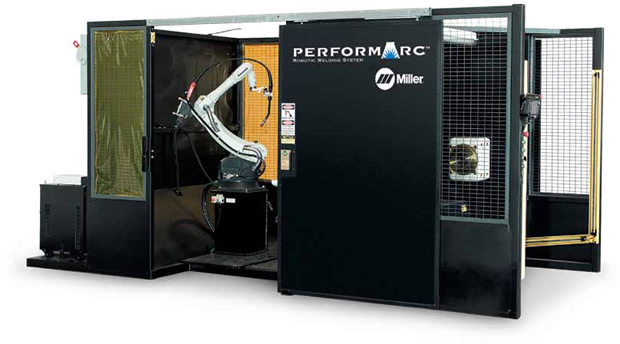

Performarc PA102S / PA350S

PA102S / PA350S

Servo Table. Fast, safe and reliable. It takes 2.2 sec for the table to rotate. Less operator fatigue since the operator does not have to walk as far to load parts. The table is an additional 7th axis for the robot, so it's extremely reliable.

Typical part sizes (in inches): 12 x 53, 18 x 45, 24 x 30

Brochure

Performarc PA102S / PA350S

PA112S / PA750S

Similar to the machine above, except able to handle larger parts.

Typical part sizes (in inches): 12 x 87, 24 x 76, 36 x 53

Brochure

Performarc PA122

PA122S / PA550H

Similar to the PA112S / PA750S above. Instead of a flat table, now there are servo head and tailstocks on both sides.

Maximum part size (in inches): 34 x 48

Brochure

Performarc PA202

PA202S / PA1100SS

Servo Headstock and Tailstock on 2 sides. Can accomodate large parts. Operator loads on opposite side of the machine. These machines work well on large parts with long cycle times.

120 in. between faceplates, 44 in. turning diameter

Brochure

Panasonic TA1000G3

TA1000

Panasonic's smallest arm, but still has a decent reach. This arm comes as a TA1000G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1000WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application.

Reach is 1068mm from base.

Brochure

Panasonic TA1000G3

TA1400

Panasonic's midsize arm. This arm comes as a TA1400G3 which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1400WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application.

Reach is 1374mm from base.

Brochure

TA1600

Panasoni'cs medium arm. This arm comes as a TA1600G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1600WG3, which has Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application.

Reach is 1598mm from base.

Brochure

Panasonic TA1800

TA1800

Panasonic's large arm. This arm comes as a TA1800G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1800WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application.

Reach is 1796mm from base.

Brochure

Panasonic TA1900

TA1900

Panasonic's largest arm. This arm comes as a TA1900G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1900WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application.

Reach is 1895mm from base.

Brochure
